| 齿轮箱润滑油泵采用3gr70*3w21三螺杆泵配18.5kw-4电机 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 发布时间：2015-3-5 10:15:36 点击次数： | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3GR70*3W21三螺杆泵参数表:
油品的颜色，往往可以反映其精制程度和稳定性。对于基础油来说，一般精制程度越高，其烃的氧化物和硫化物脱除的越干净，颜色也就越浅。但是，即使精制的条件相同，不同油源和基属的原油所生产的基础油，其颜色和透明度也可能是不相同的。
对于新的成品润滑油，由于添加剂的使用，颜色作为判断基础油精制程度高低的指标已失去了它原来的意义。
密度:密度是润滑油最简单、最常用的物理性能指标。润滑油的密度随其组成中含碳、氧、硫的数量的增加而增大，因而在同样粘度或同样相对分子质量的情况下，含芳烃多的，含胶质和沥青质多的润滑油密度最大，含环烷烃多的居中，含烷烃多的最小。
粘度
粘度反映油品的内摩擦力，是表示油品油性和流动性的一项指标。在未加任何功能添加剂的前提下，粘度越大，油膜强度越高，流动性越差。
粘度指数:粘度指数表示油品粘度随温度变化的程度。粘度指数越高，表示油品粘度受温度的影响越小，其粘温性能越好，反之越差。 用来输送温度≤150℃、粘度3-760cSt、不含固体颗粒、无腐蚀性、具有润滑性能的介质。适用压力范围：0.6-2.5Mpa;适用流量范围：0.6-123m3/h。主要应用于燃油输送、液压工程、船舶工程，石化及其他工业。Used to transfer temperature 150 ℃, the viscosity of 3 or less - 760 CST, not containing solid particles,non-corrosive, has the lubrication performance of the medium.Apply pressure range: 0.6 to 2.5 Mpa;Applicable flow range: 0.6-123 m3 / h.Mainly used in the fuel transfer, hydraulic engineering, Marine engineering, petrochemical and other industries.

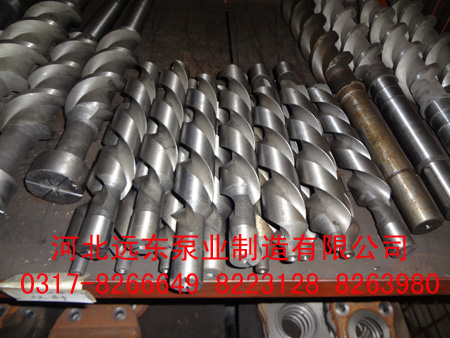

应用范围:1、介质为直线连续输送、无搅拌、无脉动。2、振动小，噪音低。3、压力高、效率高。4、结构简单、拆装方便。5、体积小，重量轻。6、磨损轻微，寿命长。Application scope: 1, medium for linear continuous transmission, without stirring, without pulsation.2, small vibration, low noise.3, high pressure and high efficiency.4, simple structure, convenient tear open outfit.5, small volume, light weight.6, wear light, long service life. 3G型三螺杆泵是转子型容积泵，适于输送各种不含固体颗粒，无腐蚀性油类及类似油的润滑性液体、输送液体粘度2~760mm2/s，温度不超过80℃, 超过80℃可用高温泵3GW型。3 g type is three screw pump rotor type positive displacement pump, is suitable for conveying various not containing solid particles, non-corrosive oil lubricity and similar oil liquid, conveying liquid viscosity was 2 to 760 / s, temperature not over 80 ℃, more than 80 ℃ high temperature pump available 3 gw type. 3G型三螺杆具有多种结构，一般小流量泵衬套和泵体合为一个，可以卧式和立式安装。进油口方向可相隔90°任意安装，轴封多数为机构密封。中等流量以上泵，衬套为一个单独的零件固定于泵体内，螺杆轴端装有平衡环以液力平衡其轴向力。一般结构为卧式。进油口方向亦可以相隔90°任意安装。改变泵体后可制成立式。轴封根据情况有机械密封和软填料密封两种结构。Three screw with multiple structure of 3 g, general small flow pump bushings and pump body into one, can be installed in a horizontal and vertical.Oil inlet direction can be 90 ° apart any installation, most of the shaft sealing seal for your organization.The medium flow in pump, bushing as a separate component fixed in the pump body, screw shaft end is equipped with the gimbal ring to hydraulic balance the axial force.The general structure is horizontal.Inlet direction also can be 90 ° apart any installation.After the change of pump body can be made into vertical.Depending on the situation of the shaft sealing with mechanical seal and soft packing seal two structures. 3G型三螺杆泵轴伸支承较小，应由原动机经弹性联轴器直接驱动，不得用皮带轮等会产生额外径向力较大的传动方式传动。3 g type three-screw pump shaft and bearing is small, should be driven by a prime mover directly by the elastic coupling, shall not be used pulley will produce additional radial force large transmission way. 输送各种油类时应注意事项：When conveying various oil matters should be paid attention to: 1、输送40~150mm2/s的油类最合适，允许按泵的最高工作压力使用。2、输送40mm2/s以下的油类，为保证泵的流量及寿命应降压使用。3、输送150mm2/s以上的油类，且进油管道过长，弯头过多，泵工作时如产生噪音或振动现象，则应考虑更换低一级转速的电机运转或缩短吸入管道，减少弯头。1, delivery was 40 ~ 150 / s best oils, permitted to use according to the maximum working pressure of pump.2, transmission oil, under 40 was/s in order to ensure the pump flow and life should be used antihypertensive.3, transmission of more than 150 was/s oils, and the oil inlet pipe is too long, too much bend, such as noise or vibration phenomenon when the pump work, should consider to replace the low level of rotational speed of motor operation or shorten the suction pipe, reducing elbow. 3G型三螺杆泵安装要求:3 g type three-screw pump installation requirements: 1、安装前应检查泵的油封是否良好，并检查泵在运输中是否损坏，可用手转动联轴器是否有卡劲现象，如有则应拆泵进行清洗，修理和校正。2、安装泵的进油和排油管道时，其管径不得小于泵的进油和出油口口径，进油管道不得过长，弯头不得过多，否则将影响泵的工作状态。3、当有两台以上的泵安装在同一条主管线上，为便于泵的启动，在近泵的排油管上必须安装逆止阀。4、对于在较高温度（指60℃以上）下输送粘度大的油类（如：重油）的备用泵，必须是热备用泵，否则泵在低温下启动会造成电机过载或泵损坏。（建议在靠近泵的排油管上的逆止阀旁，并联安装一个小回流阀，对备用泵可微启回流阀，使泵缓慢逆转，其逆转速≤100转/分，使部分热油经常流过泵内，达到泵热备用目的）。5、输送介质内含有机械杂质。将严重影响泵的运转和降低使用寿命，因此在泵安装前，必须仔细清除进油管内的焊渣，沙粒等杂质，并应在进油管道靠近泵处安装滤器，滤器网孔大小，可根据工作情况及介质粘度确定。（一般可用40~80目网），过滤面积一般不得小于进油管横截面积的20倍。6、尽量在泵进油和排油口处的螺纹孔上连接压力表和真空表，以便于观察泵的运转状态。7、原动机与泵的转轴必须在同一中心线上，可用直尺测隙规在联轴器圆周上间隔90°处检查。8、原动机与泵的转向必须一致，严格禁止原动机驱动泵逆转。电机接线时，应先脱开电机与泵的联轴器，对电机作试运转。使其转向与泵的转向标志一致。1, before installation should check whether the oil seal of the pump is good, and check the pump is damaged in transportation, turn the coupling usable hand card trouble phenomenon, if there is any should tear open pump for cleaning, repair and calibration.2, installation of pump suction and discharge of oil pipe, the pipe diameter shall not be less than the oil inlet of the pump and the oil outlet diameter, inlet pipe shall not be too long, elbow shall not too much, otherwise will affect the pump working condition.3, when more than two head of pump installed in the same line, to facilitate pump start-up, in close to the oil drain pump must be installed on a non-return valve.4, for under high temperature (above 60 ℃) conveying the viscosity of oil (such as: heavy oil) of the standby pump, it must be hot standby pump, otherwise the pump at low temperature can cause the damage of motor overload or pump.(suggest near the exhaust non-return valve on the tubing pump, a small return valve installed in parallel, differentiable and the backflow preventer to standby pump, the pump slow reversal, the reverse speed 100 r/min or less, often make some hot oil flows through the pump, to pump hot standby purposes).5, mechanical impurity is contained within the transmission medium.Will seriously affect the operation and reduce the service life of pump, so before the pump installation, must be carefully clean up the feed tube welding slag, impurities such as grains of sand, and shall be installed in the inlet pipe near the pump filter, filter mesh size, is decided according to the working condition and medium viscosity.Available (40 ~ 80 mesh net), filter area generally shall not be less than 20 times into the cross-sectional area of the tubing.6, as far as possible in the pump suction and discharge of oil on the threaded hole mouth connect pressure gauge and vacuum gauge, in order to observe the pump running state.7, prime mover and the pump shaft must be in the same center line, available ruler feeler gauge in the coupling of the circumference of a circle by 90 ° in check.8, steering engine and pump must be consistent, strictly prohibited prime motor driven pump reversal.Electrical wiring, should first release coupling of motor and pump, a test run on the motor.The steering pump and steering sign agreement. 3G型三螺杆泵的使用1、泵启动前，必须全开进油和排油闸阀。2、首次启动泵或再次使用长期封存的泵时，泵内无介质，应在泵的进油腔灌注适量输送介质，避免泵干启动。3、泵启动后，应密切注意电流表，压力表和真空表的数值，超出规定值时，应停泵找出原因后，再行启动。4、轴封处点滴泄露，应属正常现象，当泄露量大量增加时，对软填料密封应压紧填料压盖，对机械密封应停泵修复后，再行启动。5、用高温蒸汽清扫管线时，应避免高温蒸汽通过泵内。6、如果泵长期不工作时，应进行油封，并定期检查油封情况，必要时重新油封。The use of 3 g type three-screw pump 1, before starting the pump, oil inlet must be fully open and oil discharge gate valve.2, start the pump for the first time or again for a long time use of the pump, the pump inside without medium, should be in the inlet of the pump cavity perfusion amount transfer medium, avoid dry start pump.3, the pump starts, should pay close attention to current meter, pressure gauge and vacuum gauge value, beyond the specified value, should stop pump after find out, start again.4, shaft sealing drip leakage, should belong to the normal phenomenon, when the leak amount of increase, the soft packing seal should be compression packing gland, to pump mechanical seal shall be shutdown after repair, start again.5, with high temperature steam cleaning pipeline, should avoid high temperature steam through the pump.6, if the pump is not working for a long time, should carry on the oil seal, and regularly check oil seal, oil seal again if necessary.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
润滑油一般由基础油和添加剂两部分组成。基础油是润滑油的主要成分，决定着润滑油的基本性质，添加剂则可弥补和改善基础油性能方面的不足，赋予某些新的性能，是润滑油的重要组成部分。
