| KCB300齿轮泵流量18m3/h做润滑油排油泵助力四川成达 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 发布时间：2015-4-3 9:05:28 点击次数： | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

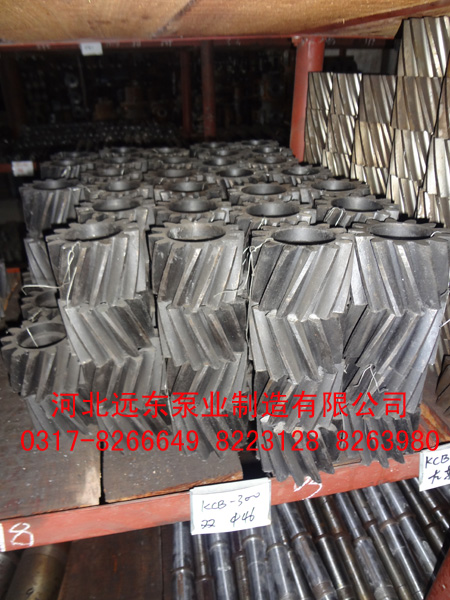

KCB300齿轮泵流量18m3/h,压力0.36Mpa,吸入真空高度3米,效率42%,口径70,电机功率7.5KW KCB300齿轮图片:

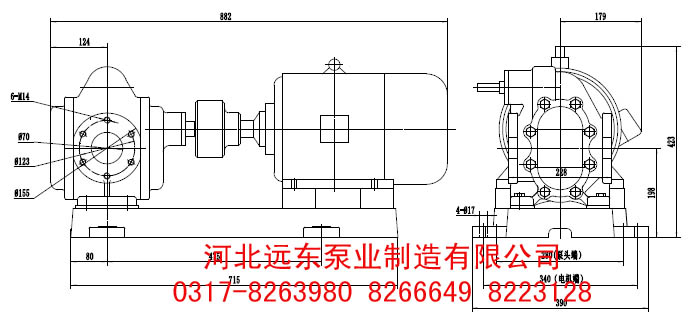

KCB300整机安装尺寸图
KCB齿轮油泵在输油系统中可用作传输、增压泵；KCB gear oil pump in the oil system can be used as a transport, booster pump; 在燃油系统中可用作输送、加压、喷射的燃油泵；In the fuel system can be used as a transport, pressure, jet fuel pump; 在一切工业领域中，均可作润滑油泵用。In all industrial areas, can be used as lubricating oil pump. KCB齿轮泵主要有齿轮、轴、泵体、安全阀、轴端密封所组成。齿轮经热处理有较高的硬度和强度，与轴一同安装在可更换的轴套内运转。泵内全部零件的润滑均在泵工作时利用输出介质而自动达到。KCB gear pump are mainly gear, shaft, pump body, valve, shaft end seal. Gear after heat treatment with high hardness and strength, and shaft installed in the replaceable shaft sleeve. In all parts of the lubrication pump are pump work automatically to achieve using the output media. 泵内有设计合理的泄油和回油槽，是齿轮在工作中承受的扭矩力最小，因此轴承负荷小，磨损小，泵效率高。Pump is the drainage and back into the groove of reasonable design, is a gear in the work under the minimum torque force, so the bearing load is small, wear small, pump with high efficiency.
泵设有安全阀作为超载保护，安全阀的全回流压力为泵额定排除压力的1.5倍，也可在允许排出压力范围内根据实际需要另外调整。但注意本安全阀不能作减压阀的长期工作，需要时可在管路上另行安装。从主轴外伸端向泵看，为顺时针旋转。Pump is equipped with safety valve as overload protection, the total reflux pressure relief valve is rated pump out pressure of 1.5 times, also can allow discharge pressure range according to actual needs and adjust. But note that this cannot be a long-term work pressure reducing valve, relief valve can be installed in the piping shall be separately when necessary. To pump from the main shaft overhang end to see, for clockwise. KCB齿轮泵安装顺序: KCB gear pump installation order:
1、在安装过程中，为防止杂物落入机器内，机组的所有孔眼均应盖好。1, during the installation process, so as to prevent debris into the machine, all perforation should cover of the unit. 2、在接好管路及确定电动机转动方向后，再接上联轴器，并再校核一遍轴的同心度。2, good on the line and determine the direction of motor rotation, and coupling is connected, check it again and shaft concentricity. 3、校正泵轴和电机轴的同心度，在联轴大路外圆上，允许偏差0.1毫米；两联轴器平面的间隙应保证2～4毫米，（小泵取小值）间隙要均匀，允差0.3毫米。3, calibration of pump shaft and motor shaft concentricity, cylindrical, along the road in coupling allowable deviation of 0.1 mm;In the plane of the two coupling gap should guarantee 2 ~ 4 mm, small little pump (in value) clearance wants even, tolerance of 0.3 mm. 4、将机组放在埋有地脚螺栓的基础上，在底座与基础之间，用成对的楔垫用校正用。4, put the unit in buried with anchor bolt, on the basis of between the base and foundation, with pairs of wedge cushion with correction. 5、为防止管线中杂物进入泵内，对新安装的管线，在泵胶应装设过滤器，其有效截面应大于吸入管截面的2～3倍。5, in order to prevent debris into the pump in the pipeline, pipeline of new installation glue should be installed in the pump filters, the effective cross section should be greater than the suction pipe section 2 ~ 3 times. 6、松开联轴大，用水平仪分别放在泵轴和底座上，通过调整楔垫，校正机组水平，适当拧紧地脚螺栓，以防走动。6, loose coupling, use level on the pump shaft and base, respectively, by adjusting the wedge cushion, correction unit level, tighten the anchor bolts, just in case. 7、在机组实际试运行2～3小时后，作最后检查，如无不良现象，则认为安装合格。 7, in the actual commissioning unit 2 ~ 3 hours later, a final inspection, if there is no negative phenomenon, is considered qualified installation.
|
