| SNS120R42U12.1W21立式三螺杆泵在船上用作输送润滑油泵 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 发布时间：2015-6-24 17:05:37 点击次数： | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

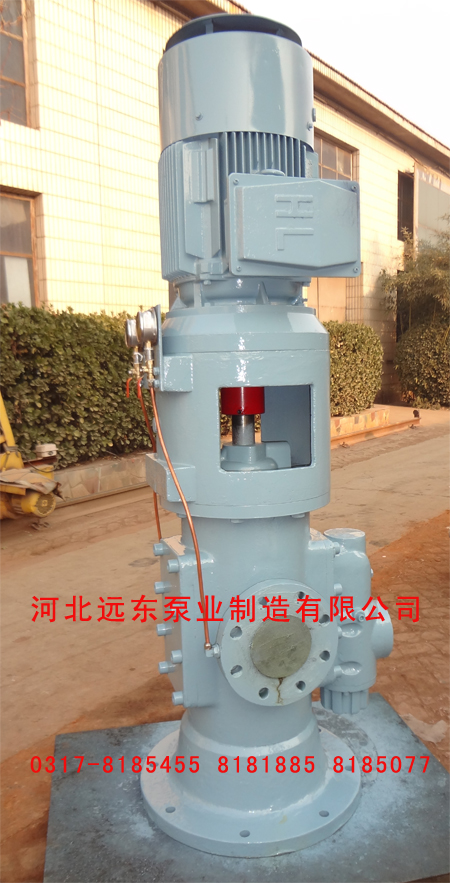

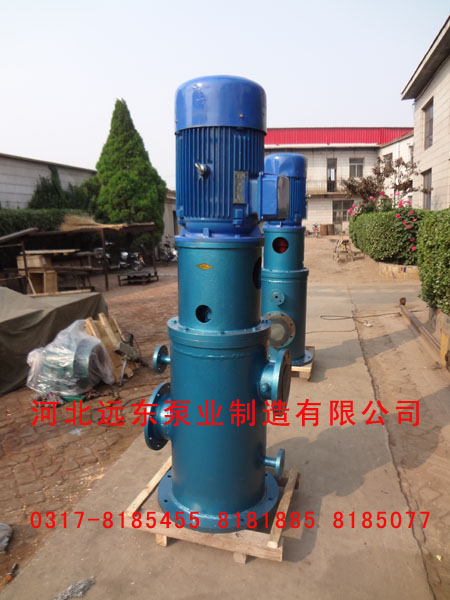

SNS120R42U12.1W21立式三螺杆泵在船上用作输送润滑油泵
●SN三螺杆泵特点：SN three screw pump features: 1.转子液压平衡，振动小，噪音低。1. The rotor of the hydraulic balance, little vibration, low noise. 2.输出稳定，无脉动。2. The output is stable, no pulsation. 3.高效率。3. High efficiency. 4.具有很强的自吸能力。4. Has a strong self-priming capacity. 5.零部件采用通用性强的系列化设计，具有多种安装方式。5. Parts versatility of seriation design, with a variety of installation. 6.结构紧凑，体积小，重量轻，可在较高转速下工作。6. Compact structure, small volume, light weight, can work under high rotation speed.
●SN三螺杆泵输送介质种类：Low SN three screw pump transmission medium type: a. 润滑性液体：如机械油，滑油，重油，渣油A. lubricate liquid, such as machine oil, lubricating oil, heavy oil, residual oil b. 低润滑性液体：如轻柴油，重柴油，含蜡稀油B. lower lubricity liquid, such as light diesel oil, heavy diesel oil, wax containing thin oil c. 粘性液体：如各种合成橡胶液和人造胶液，乳化液C. viscous liquid, such as various kinds of synthetic rubber and synthetic rubber, emulsion
●SN三螺杆泵应用：Low SN three screw pump application: ·在供热设备中用做燃油，燃油供应和输送泵。In heating equipment used as fuel, fuel supply and transfer pump. ·在机械工业中用做液压，润滑和摇控马达泵。In the mechanical industry used as hydraulic, lubrication pump and the remote control motors. ·在化学石油化工和食品工业中用做装载，输送和供液泵。In the chemical, petrochemical and food industries used as loading, transportation and feed liquid pump. ·在船舶上用做输送、增压、燃油喷射和润滑油泵以及船用液压装置泵。On the ship, used for conveying, pressurization, fuel injection, and lubricating oil pump and Marine hydraulic gear pump. 三螺杆泵(SN三螺杆泵,sm三螺杆泵,spf三螺杆泵)选型时，要尽可能详尽地了解泵的使用条件，除运行参数，如流量、压力须要弄清楚之外，输送的介质的特性如介质的腐蚀性，含气量含固溶物的比率及固体颗粒的大小以及介质的工作温度、粘度、比重对泵内过流元件的腐蚀性等和泵装置的吸入条件，安装条件均要了解。Three-screw pump (SN three screw pump, three screw pump, sm SPF three screw pump selection, should understand the using condition of pump as much detail as possible, in addition to the operating parameters, such as flow rate, pressure need to figure out, transmission characteristics, such as corrosive medium, the medium of air content of solid solution and the ratio of the size of the solid particles as well as the working temperature, medium viscosity, specific gravity within the pump flow components of corrosive and pump suction conditions, such as the installation conditions are to understand. 用户可以填写附在本样本后的泵数据表，由厂家负责选型，也可以根据样本按以下步骤自行选型。User can fill in the attached to this sample after pump data sheets, the manufacturer shall be responsible for the selection, can also according to the sample, follow these steps to selection. 第一， 确定泵的转速：（SN 系列螺杆泵的极限转速为＜6000r.p.m）Determine the speed of the pump: (SN series screw pump limit speed for < 6000 r. p.) 1．螺杆泵转速的选择以输送介质的粘度和泵的规格确定转速范围，一般输送高粘度介质时，螺杆泵应选低转速；若粘度低 ，相应选择高转速。The rotational speed of screw pump selection for medium viscosity and determine speed range of the specifications of the pump, transmission of high viscosity media in general, the screw pump should choose low speed;If the low viscosity, high speed accordingly. 对于大规格的螺杆泵（主杆外径∮60mm 以上）For the large size of screw pump (more than 30 main stem diameter of 60 mm)
介质粘度γ＞20°E 时，转速以970rpm 或720rpm 的螺杆泵。Medium viscosity gamma > 20 ° E, screw pump speed to 970 RPM and 720 RPM. 若γ＞80°E 如粘胶液，转速可选n=200~500rpm的螺杆泵If gamma > 80 ° E, such as viscose, of optional n = 200 ~ 500 RPM of the screw pump 对于小规格的螺杆泵（主杆外径∮60mm 以下）：For small specifications of the screw pump (below 30 main stem diameter of 60 mm) : γ＞20°E 时，n 选1450rpm 或970rpm的螺杆泵. Gamma > 20 ° E, n selected 1450 RPM and 970 RPM of screw pump. γ＞80°E 时，n 选300~600rpm的螺杆泵。Gamma > 80 ° E, n selected 300 ~ 600 RPM of the screw pump. 2．由于螺杆泵的转速愈高摩擦功率愈高，螺杆泵的磨损越大，寿命越短，如果输送介质的润滑性较差，或含有微量杂质，应选较低转速，使泵保持较长的使用寿命。推荐n＜1450rpm。Friction due to the higher the rotational speed of screw pump power, the higher the wear and tear of screw pump, the greater the shorter life, if the medium of lubricity is poorer, or trace impurities, should choose a lower speed, to keep pump with long service life.The recommended n < 1450 RPM. 第二， 结构形式的选择The choice of the form of structure 结构的选择可根据螺杆泵的运行环境和安装环境，选择合适的安装形式并遵循以下的原则：On the choice of structure based on the operating conditions of a screw pump and the installation environment, choosing the appropriate type of installation and follow the following principles: 1． 输送润滑性油类，且温度T＜80℃时，选择内置轴承结构的螺杆泵。1. Conveyor lubrication oil, and temperature T < 80 ℃, choose built-in bearing structure of the screw pump. 2． 输送润滑性较差，或温度T＞80℃时，选择外置轴承结构的螺杆泵。2. The conveyor lubrication is poorer, or temperature T > 80 ℃, select external bearing structure of the screw pump. 3． 输送流动性差，粘度高的介质或对所输送介质进行加热或保温时，选双层加热泵体结构的螺杆泵。3. Conveyor illiquid, high viscosity of the medium or the transport medium for heating or thermal insulation, choose double screw pump heat pump body structure. 4． 输送高温介质时，应选择耐高温的材料制成的泵或局部冷却的螺杆泵。4. High temperature medium, high temperature resistant materials should be selected for the pump or cooling screw pump. 5． 关于螺杆泵的吸入能力可查阅样本。5. About the screw pump suction capacity can refer to the samples. 第三， 螺杆泵材料组合的选择 见上表Third, the choice of the screw pump material combination See the table above 第四， 螺杆泵的吸上能力Fourth, the screw pump suction on ability 通过降低转速或加热降低介质黏度的方法，可达到高的吸上性能，见NPSHR 表By reducing the speed or heating medium viscosity reduction methods, can achieve high on absorption performance, see the NPSHR table 第五，配套电机的选配Fifth, motor selection 螺杆泵的型号选定后，根据样本数据，可查到泵的轴功率N，该轴功率再加上一定的功率储备后，作为选配电机的依据，一般电机功率Nm 不小于泵轴功率N 乘以功率储备系数K 所得的值即：Nm≥K·N。K 值Screw pump model is selected, according to the sample data, the pump shaft power can be N, the shaft power plus the power of a certain reserve, as a basis for the matching machine, general motors power Nm not less than the pump shaft power N times the power reserve coefficient K of the proceeds of the value, namely: the Nm acuity k. N.K value
三螺杆泵能够在不同的行业中使用，在其中能够发挥重要的作用和性能，在行业中能够充分展现良好的性能优势，在产业性能中发挥重要的作用和贡献。下面从特点.困油及措施不平衡等方面向大家介绍一下三螺杆泵(3GR三螺杆泵,SNH三螺杆泵). Three screw pump can be used in different industries, in which can play an important role and performance, can fully show the good performance advantages in the industry, play an important role in industry performance and contribution.From below. Trapped oil and measures unbalance introduce three screw pump (3 gr three screw pump, three screw pump SNH).
1. 特点：1. Features: 1）三螺杆泵(3GR三螺杆泵,SNH三螺杆泵)的均匀流量与齿数成正比，而与模数的平方成比例。体积小，重量轻，结构简朴，制造利便，价格低，工作可靠，自吸机能较好，对油液污染不敏感，维护利便等。1) the three screw pump (3 gr three screw pump, three screw pump SNH) uniform flow rate is proportional to the number of teeth, and with the square of the modulus ratio.Small volume, light weight, simple structure, manufacture, then, low prices, reliable work, self-priming function is good, is not sensitive to oil pollution, maintenance, etc. 2）三螺杆泵的流量与齿宽成正比，但齿宽的增大受齿轮所受液压径向力增加的限制，一般取齿宽B＝（6～10）m，高压时取小值。另外，在容积式液压泵中，三螺杆泵的流量脉动最大。2) three screw pump flow rate is proportional to the tooth width, but the increase of tooth width is restricted by the hydraulic radial force increased by gear, generally take tooth width B = (6 ~ 10) m, when the high pressure of little value.In addition, in the positive displacement hydraulic pump, three screw pump flow pulsation is the largest. 3）进步转速可以进步泵的流量，但受泵吸入机能的限制。齿轮泵的转速一般在1000～1500r/min。3) progress speed can progress the flow of the pump, but restricted by pump suction function.The speed of the gear pump is in commonly 1000 ~ 1500 r/min. 2、三螺杆泵(3GR三螺杆泵,SNH三螺杆泵)压力的措施 端面间隙自动补偿原理： 利用特制的通道把三螺杆泵内压油腔的压力油引到浮动轴套的外侧，作用在一定外形和大小的面积上，产生液压作用力，使轴套压向齿轮端面，这个力必需大于齿轮端面作用在轴套内侧的作用力，才能保证在各种压力下，轴套始终自动贴紧齿轮端面，减小三螺杆泵内通过端面的泄漏，达到进步压力的目的。其缺点是：流量和压力脉动较大，噪声大，排量不可变等。 ３.三螺杆泵(3GR三螺杆泵,SNH三螺杆泵)的困油现象及卸荷 困油现象的危害： 使闭死容积中的压力急剧升高，使轴承受到很大的附加载荷，同时产生功率损失及液体发烧等不良现象；溶解于液体中的空气便析生产气愤泡，产气愤蚀现象，引起振动和噪声。 消除困油现象： 在三螺杆泵(3GR三螺杆泵,SNH三螺杆泵)的侧板上或浮动轴套上开卸荷槽。非对称式，必需保证在任何时候都不能使吸油腔与压油腔相互串通；这样的齿轮泵不能反转。三螺杆泵(3GR三螺杆泵,SNH三螺杆泵)在使用中注意不同形式的特点和性能，在使用中经常出现不同的问题和反应，在使用中保证正常的使用，出现问题及时进行解决，对不同的方面进行控制，按照正常的方式进行。
我公司始建于 1986 年，有近三十年的加工经营，目前拥有各类主要生产设备 120 多台（套）。通用设备有大型立车、坐标镗铣床、数控铣、立式加工中心、外圆磨床、滚齿机、万能铣床及各类车床。专用设备有磨具工具磨、转子刀具刃磨机、转子刀具测量机、全自动螺旋转子铣、半自动螺旋转子铣、专用拉床、多孔镗床。 我公司深谙完善的检测设备是一流产品产出的有力保障，为此我公司斥巨资购置了万能工具显微镜、渐开线检测仪、螺旋线检测仪，万能测齿仪、光学倾斜仪、布洛维硬度计、投影仪等。我公司还建有国家评定的 B 级产品试验站，理化试验室、长度计量室均是国家计量确认的合格单位。 在信息化建设方面，我公司目前广泛采用 CAD 制图，及相应的技术管理软件。财务管理实现电算化，销售采用 CRM 软件管理，生产系统选用 ERP 管理软件中的适用模块。这些现代化信息化工具的使用，实现了管理工作的高效、严密、及规范性，使公司的发展踏入一个良性循环的轨道。
1. 本公司常规产品 1-3 天发货 , 特殊要求或者需定做的产品发货时间已与客户协商为准 , 2. 泵运费方式有两种 : 快递和物流 . 小泵和小型配件发快递 , 其余体积较大 , 数量较多 , 推荐走专线物流货运 , 一般南方 , 中部地区及沿海地区 3-5 天左右到达 . 西部 , 北部较远的地区以及少数二次中转地区 5-8 天左右可到 , 具体覆盖范围请咨询公司客服人员 . 安装使用 : 请您根据产品说明书的步骤进行操作 , 如有问题 , 请联系我公司 , 我公司将会请最专业的技术人员为您提供服务 . 为了保护您的利益 , 我们已经提醒客户在收到货物时 , 要开箱验货 , 如在打开验货时发现货物丢失 , 损害或者不符 , 请拒绝签收 , 您签收就代表已准确无误的收到后屋 , 若在签收货物之后才发现货物丢失或者不符 , 如不负责 . 客户收到货后 , 产品无法安装或者规格有误 , 本公司提供退货或者换货服务 , 退货或者换货的客户请保证货物的完好无损 , 并承担往返运费 . 客户收到后 , 如果产品存在质量问题 , 请在收货后 7 天内联系我公司 , 提供相关质量问题图片 , 我公司将在第一时间给您退货或者换货 , 因为我公司已经在发货前已经仔细检查过 , 所以过期将不提供此项服务 , 还请谅解 .
