| KCB1600齿轮泵产品信息 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 发布时间：2015-1-5 15:25:27 点击次数： | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||

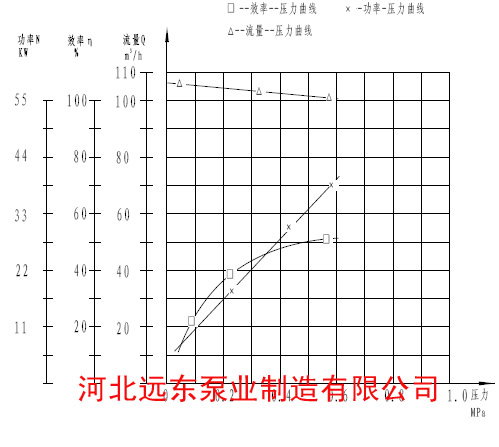

KCB1600齿轮泵流量96m3/h,压力0.6Mpa,吸入真空高度2米,效率42%,口径150,配用电机为Y45KW-4 KCB1600性能曲线图:
KCB齿轮油泵在输油系统中可用作传输、增压泵；KCB gear oil pump in the oil system can be used as a transport, booster pump; 在燃油系统中可用作输送、加压、喷射的燃油泵；In the fuel system can be used as a transport, pressure, jet fuel pump; 在一切工业领域中，均可作润滑油泵用。In all industrial areas, can be used as lubricating oil pump. KCB齿轮泵主要有齿轮、轴、泵体、安全阀、轴端密封所组成。齿轮经热处理有较高的硬度和强度，与轴一同安装在可更换的轴套内运转。泵内全部零件的润滑均在泵工作时利用输出介质而自动达到。KCB gear pump are mainly gear, shaft, pump body, valve, shaft end seal. Gear after heat treatment with high hardness and strength, and shaft installed in the replaceable shaft sleeve. In all parts of the lubrication pump are pump work automatically to achieve using the output media. 泵内有设计合理的泄油和回油槽，是齿轮在工作中承受的扭矩力最小，因此轴承负荷小，磨损小，泵效率高。Pump is the drainage and back into the groove of reasonable design, is a gear in the work under the minimum torque force, so the bearing load is small, wear small, pump with high efficiency.
泵设有安全阀作为超载保护，安全阀的全回流压力为泵额定排除压力的1.5倍，也可在允许排出压力范围内根据实际需要另外调整。但注意本安全阀不能作减压阀的长期工作，需要时可在管路上另行安装。从主轴外伸端向泵看，为顺时针旋转。Pump is equipped with safety valve as overload protection, the total reflux pressure relief valve is rated pump out pressure of 1.5 times, also can allow discharge pressure range according to actual needs and adjust. But note that this cannot be a long-term work pressure reducing valve, relief valve can be installed in the piping shall be separately when necessary. To pump from the main shaft overhang end to see, for clockwise.
|
.jpg)
