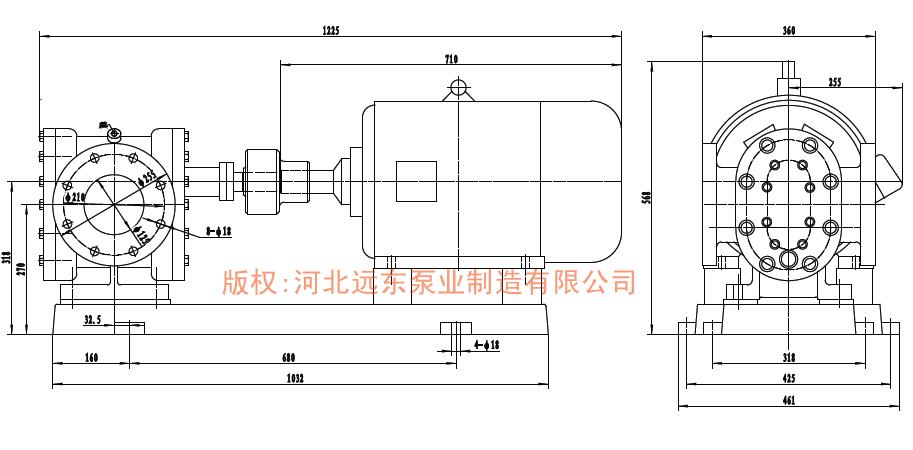

| RCB29保温夹套齿轮泵安装尺寸图 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 发布时间：2015-9-23 14:39:36 点击次数： | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RCB沥青保温泵分为普通与铸钢两种材质，均带有保温夹套，保温泵适用于常温下有凝固性或结晶而通过加温并保持一定温度又容易流动且有润滑性的液体，以及高寒地区室外安装和工艺过程中需要保温的场合，泵开始工作时首先预热降低了泵的起动功率。适用于输送有腐蚀性或无腐蚀性、卫生条件要求较高的液体，输送介质不含固体颗粒，温度不高于350℃，粘度为5cSt——1500cSt的液体，如各种化工原料、灌装医药、食品、化妆品、农药、洗涤剂、印染、酿造、树脂、胶类等行业。该泵传动方式有电机直联和减速机两种，当液体粘度超过1500cSt时，应采用减速机传动。RCB asphalt heat pump can be divided into ordinary and cast steel material, with thermal insulation jacket, heat pump under applicable interesting coagulability and crystallization and by heating and maintain a certain temperature and easy flow and lubricity of liquid, in the process of the high altitude and outdoor installation process and need to heat preservation, pump starts to work when the first preheating reduced the starting power of the pump.Applicable to transport corrosive or non-corrosive, health conditions to demand higher liquid, medium not containing solid particles, the temperature is not higher than 350 ℃, the viscosity of liquid for 5 CST - 1500 CST, such as filling a variety of chemical raw materials, pharmaceutical, food, cosmetics, pesticide, detergent, printing and dyeing, brewing, resin, rubber and other industries.The pump drive way has two kinds of motor and deceleration machine, when more than 1500 CST liquid viscosity reducer drive should be adopted.
沥青保温泵的泵体设有空心夹层，并设有进出口法兰，可用于导热油、蒸气、热水、等媒体对输送的液体和泵进行加热保温及冷却该泵传动方式有电机直联和减速机两种，当液体粘度超过1500cSt时，应采用减速机传动。 Asphalt heat pump pump body has a hollow interlayer, with import and export of flange, can be used in the thermal oil, steam, hot water, such as the media for the transportation of liquid and pump heat insulation and cooling ways there are to the pump drive motor and deceleration machine two, when more than 1500 CST liquid viscosity reducer drive should be adopted.
沥青保温齿轮泵结构形式：Asphalt insulation gear pump structure: 泵体设有空心夹层，并设有进出口法兰，可用于导热油、蒸气、热水等媒体对输送的液体和泵进行加热保温及冷却。 Pump body has a hollow sandwich, with import and export of flange, can be used in the thermal oil, steam, hot water and other media for conveying liquid and heat insulation and cooling pump. 适用范围：Scope of application: 适用于输送无腐蚀性、不含固体颗粒、在常温下有凝固性的介质，尤其适用于高寒地区室外安装和工艺过程中介质需要保温的场合，介质温度可达250℃、粘度为5-1500cst。
Is applicable to transport non-corrosive, not containing solid particles, at room temperature with coagulability medium, especially in cold area outdoor media need to heat preservation in the process of installation and process, medium temperature can reach 250 ℃, the viscosity of 5 to 1500 CST. 用途说明： 为输送常温下变稠，凝固或结晶而维持一定温度又容易流动的介质而设计的，如沥青、石蜡、松香及性质类似的液体，温度不高于200℃。 Purpose: For transport has thickened under normal temperature, solidification or crystallization and maintain a certain temperature and easy flow of medium, such as asphalt, paraffin wax, rosin and properties similar liquid, the temperature is not higher than 200 ℃.
|
