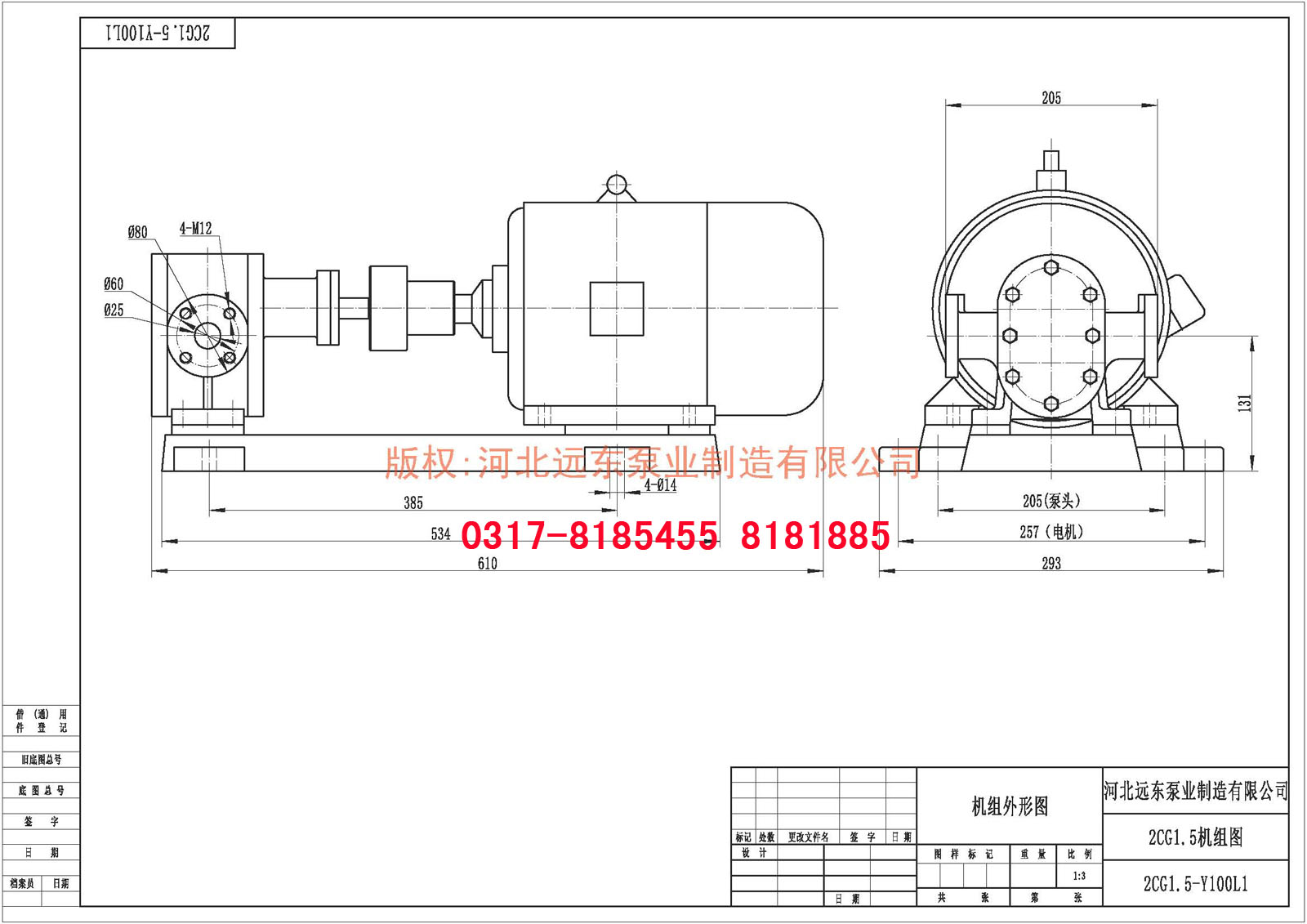

| 2CG1.5渣油输送泵配1.5kw-4电机安装尺寸图 |
| 发布时间：2016-3-21 14:01:30 点击次数： |
2CG1.5渣油输送泵配1.5kw-4电机安装尺寸图 ●2CG渣油泵用途2 CG low residue oil pump USES 用于渣油、煤焦油、落地油、泡沫原料及添加剂等介质的输送、加压、是玻璃、泡沫、建材、化工建筑、石油、粮油行业理想的输送加压设备。Used for residual oil, foam raw materials and additives, such as the medium of conveying, pressure, is glass, foam, building materials, chemical construction, petroleum, grain and oil industry ideal conveying pressure equipment.
● 2CG渣油泵应用范围2CG slag pump application range 主要用于输送各种润滑性差、含有细微颗粒的介质、温度不超过200℃，粘度不大于1500cst。Mainly used for conveying various poor lubricity, medium containing fine particulates, temperature does not exceed 200 ℃, the viscosity is not more than 1500 CST.
● 2CG渣油泵结构特点2CG low residue oil pump structure characteristics 1、主要由泵体、泵盖、齿轮、轴、轴承、及密封等部件构成。1, mainly composed of pump body, pump cover, gear, shaft, bearing and seal components. 2、三体为铸铁件、铸钢件；齿轮、轴采用特殊钢材，其表面硬度可达到HRC60以上，具有极强的耐磨性。2, three body is cast iron pieces, steel;Gear, shaft, the use of special steel, the surface hardness can reach above HRC60, with strong wear resistance.
|
